Place of Origin | Germany |
Brand Name | FEMA |
Model Number | DCM3 DCM6 DCM10 |
Brand Name | FEMA |
Product name | Pressure switch |
Place of Origin | Germany |
Product model | DCM3 DCM6 DCM10 |
Warranty | 1 Year |
Point of origin | Shanghai,China |
Packaging Details | 1pcs/box |
Use place | burner |
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
4. How long does the whole procedure being worked out?
After you place a order,the production handling time is about 45-60 days.
We need 15 days to prepare all the stuff then 30 days for manufacturing.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian.
If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
6.What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.
7.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
8.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
9.What's the lead time for regular order?
14-21 days for order quantity lower than 5000pc; For more quantity, usually 30 days.
10.Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.

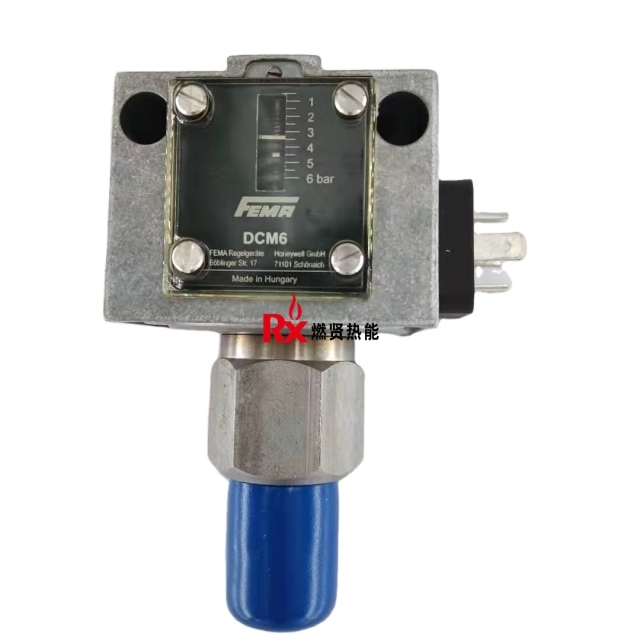

DCM6 Pressure Switch
Model: DCM6 (DCM06)
Positioning: Mechanical overpressure monitoring switch, suitable for neutral liquids and gases.
Key Specifications
Pressure Range: 0.5 – 6 bar (adjustable)
Max. Proof Pressure: 15 bar
Switching Differential: 0.15 bar (fixed)
Pressure Connection: G1/4 internal thread, G1/2 external thread
Electrical Connection: DIN EN 175301 plug
Protection Class: IP54 (IP65 optional)
Housing Material: Seawater-resistant die-cast aluminum alloy (GD Al Si 12)
Medium Temperature: -25 – 70°C (85°C for short periods)
Ambient Temperature: -25 – 70°C
Switch Contacts: SPDT microswitch, 250 VAC; 5A (inductive) / 8A (resistive)
Typical Applications
High-pressure protection for water pumps / compressors
Pressure monitoring in hydraulic / pneumatic systems
Water / air pressure control in HVAC systems
DCM10 Pressure Switch
Positioning: High-pressure variant within the same series; features an identical structure to the DCM6 but offers a higher pressure range.
Key Specifications
Pressure Range: 1 – 10 bar (adjustable)
Max. Proof Pressure: 25 bar
Switching Differential: 0.2 bar (fixed)
Pressure Connection: G1/4 internal thread, G1/2 external thread
Electrical Connection: DIN EN 175301 plug
Protection Class: IP54 (IP65 optional)
Housing Material: Seawater-resistant die-cast aluminum alloy (GD Al Si 12)
Medium Temperature: -25 – 70°C (85°C for short periods)
Ambient Temperature: -25 – 70°C
Switch Contacts: SPDT microswitch, 250 VAC; 5A (inductive) / 8A (resistive)
Typical Applications
High-pressure alarms for industrial boilers / pressure vessels
Pressure monitoring in petrochemical process pipelines
Pressure interlock protection for large-scale hydraulic power units
