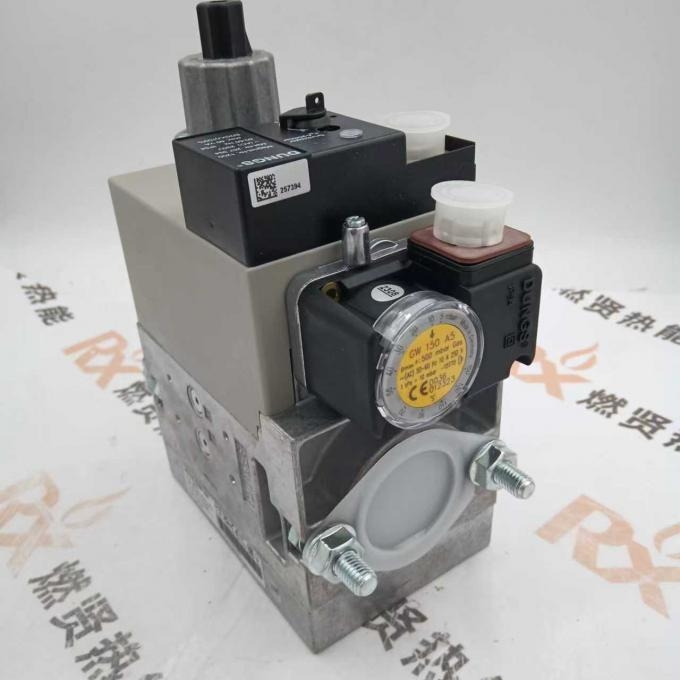

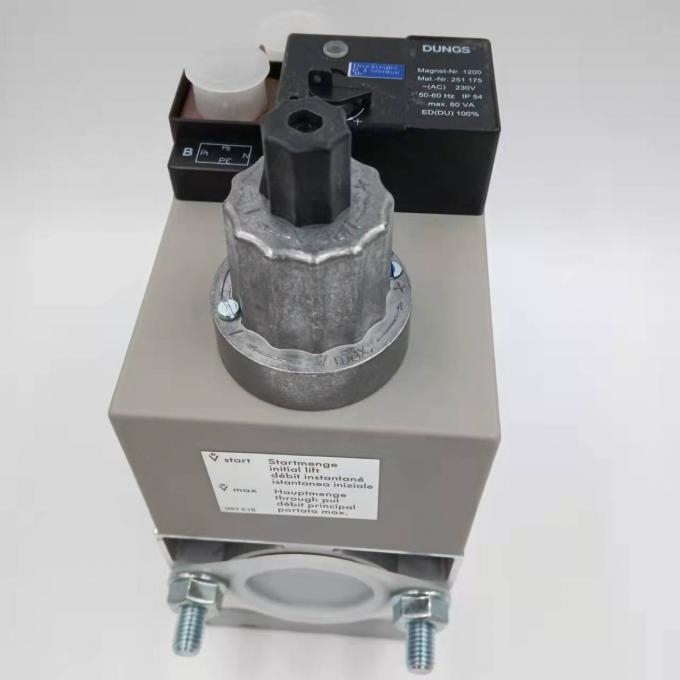

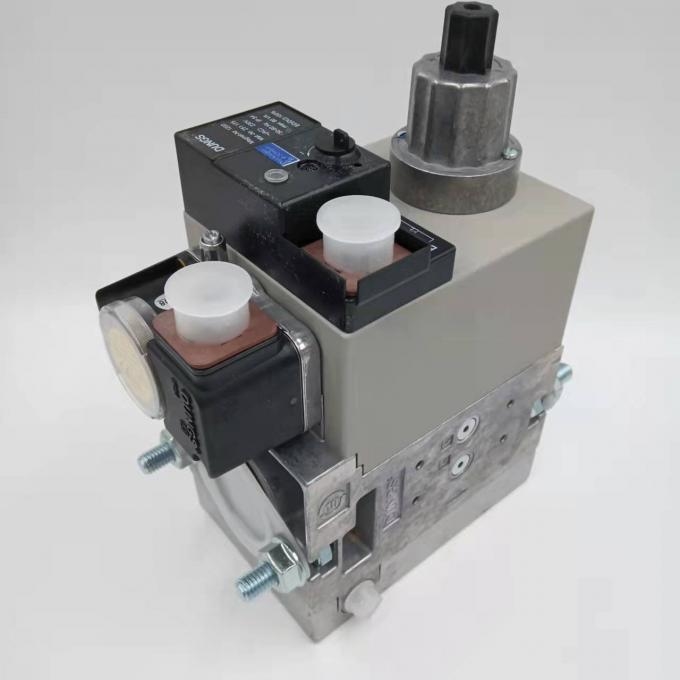

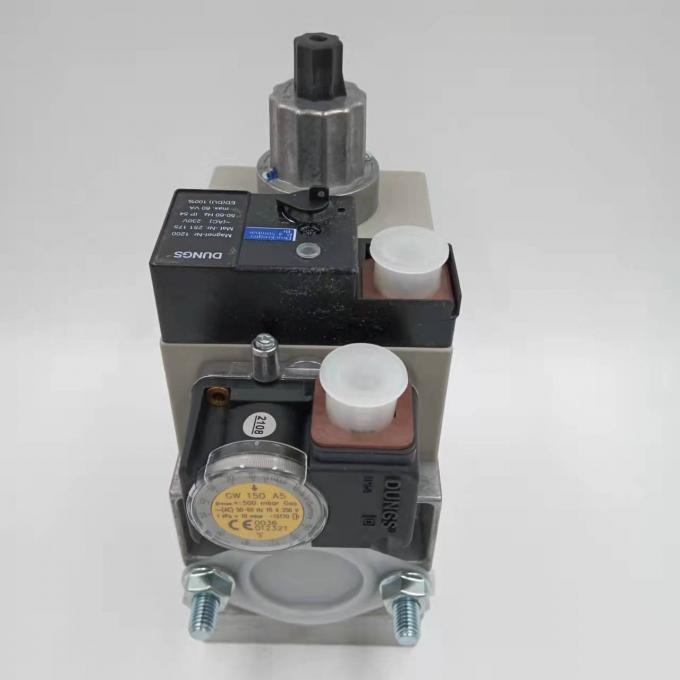

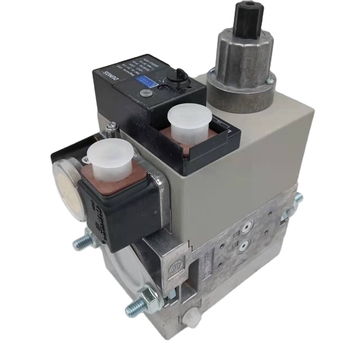

DUNGS MB-DLE412B01S50 MB-DLE412B01S20 MB-DLE415B01S22 Multi-function Combination Valve Boiler Parts STOCK
Collected in wish list
- Description
- Specification
- Q&A
- Customer Reviews
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
4. How long does the whole procedure being worked out?
After you place a order,the production handling time is about 45-60 days.
We need 15 days to prepare all the stuff then 30 days for manufacturing.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian.
If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
6.What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.
7.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
8.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
9.What's the lead time for regular order?
14-21 days for order quantity lower than 5000pc; For more quantity, usually 30 days.
10.Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.

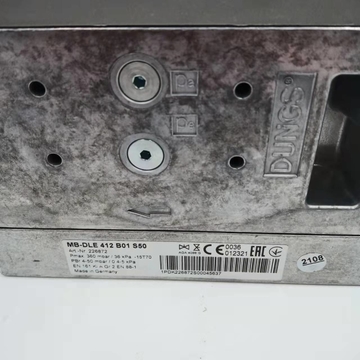

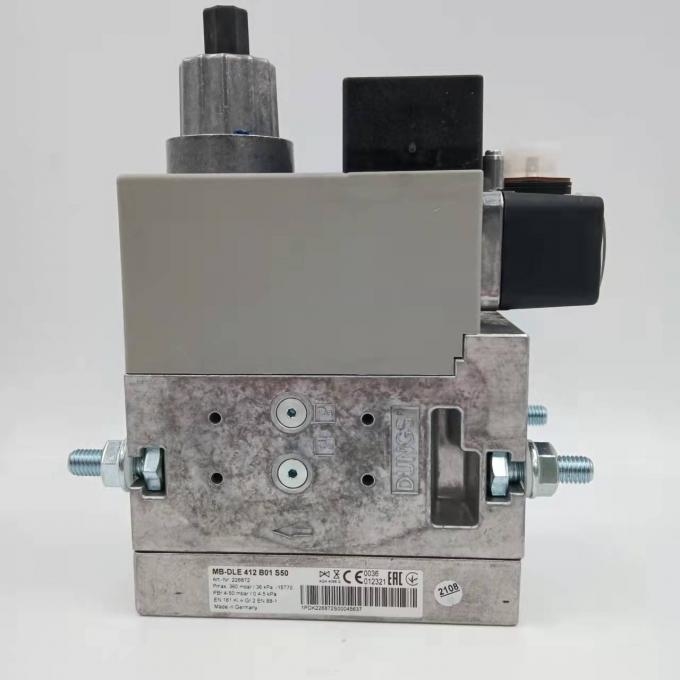

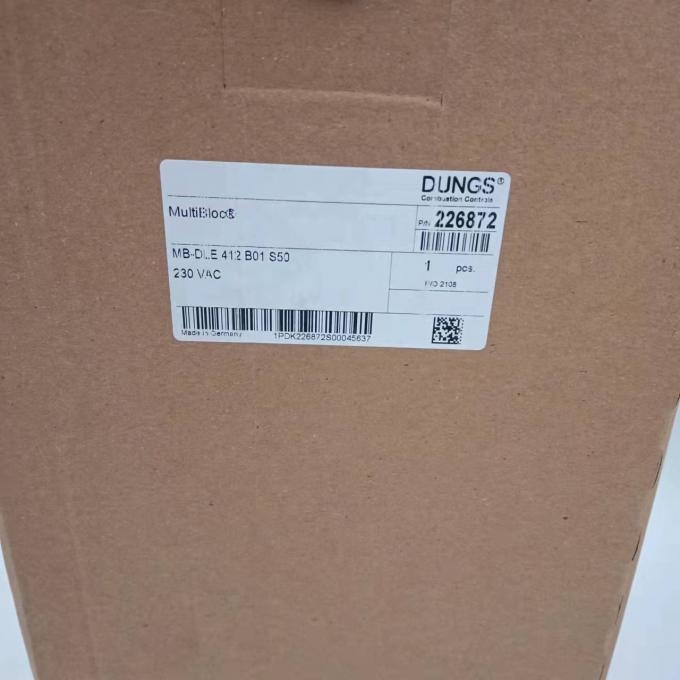

1) MB‑DLE412B01S50 (DN32, High-Pressure Type)
Nominal Diameter: DN32 / Rp1¼
Max. Operating Pressure: 360 mbar (36 kPa)
Outlet Pressure: 4–50 mbar
Body Material: Cast Aluminum
Coil Voltage: AC220/230V, 50/60Hz
Power Consumption: Approx. 5 VA
Opening Characteristics: V1 Fast Opening; V2 Slow Opening (<20s); Fast Closing (<1s)
Protection Class: IP54
Ambient Temperature: −15°C ~ +60°C
Weight: Approx. 4.5–4.8 kg
Features: High-pressure regulation range (50 mbar); suitable for industrial natural gas / LPG burners.

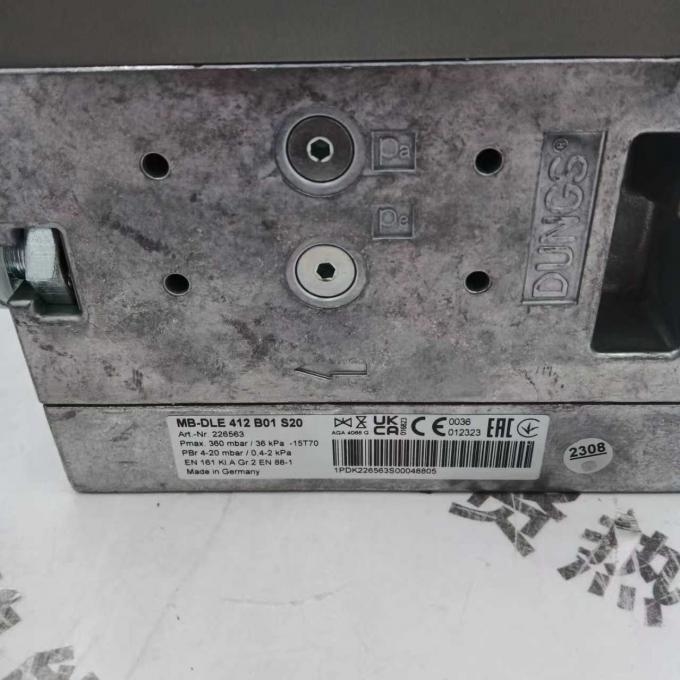

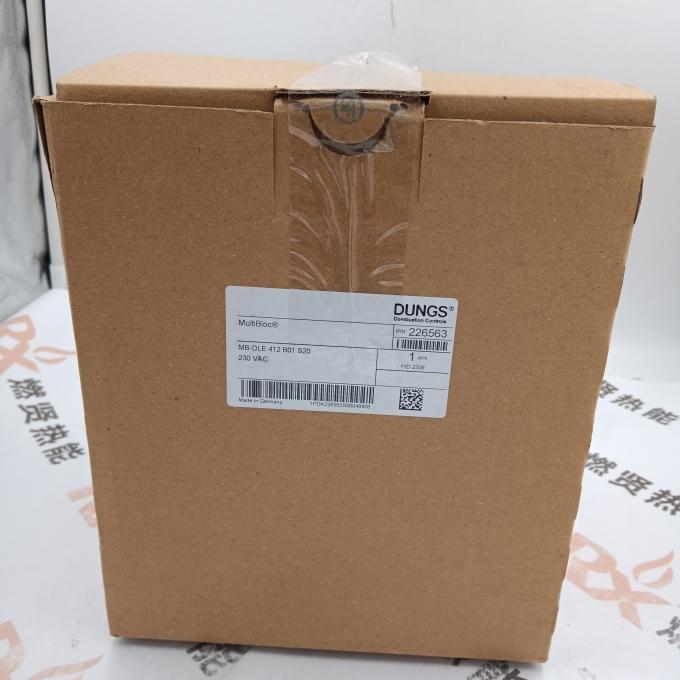

2) MB‑DLE412B01S20 (DN32, Standard Type)
Nominal Diameter: DN32 / Rp1¼
Max. Operating Pressure: 360 mbar
Outlet Pressure: 4–20 mbar (Standard Low-Pressure Range)
Other Electrical / Mechanical Parameters (same as S50):
AC230V, IP54, −15~+60°C, Fast Closing / Slow Opening
Weight: Approx. 4.8–4.9 kg
Features: The most commonly used standard model; compatible with the vast majority of boilers / burners.
3) MB‑DLE415B01S22 (DN40, Low-Pressure Type)
Nominal Diameter: DN40 / Rp1½
Max. Operating Pressure: 360 mbar
Outlet Pressure: 4–20 mbar (S22 shares the same pressure range as S20, but differs in control method)
Opening/Closing, Voltage, Protection Class, and Temperature Range: Same as above
Weight: Approx. 6.6 kg
Features: High-flow DN40 size; suitable for high-power combustion equipment.
