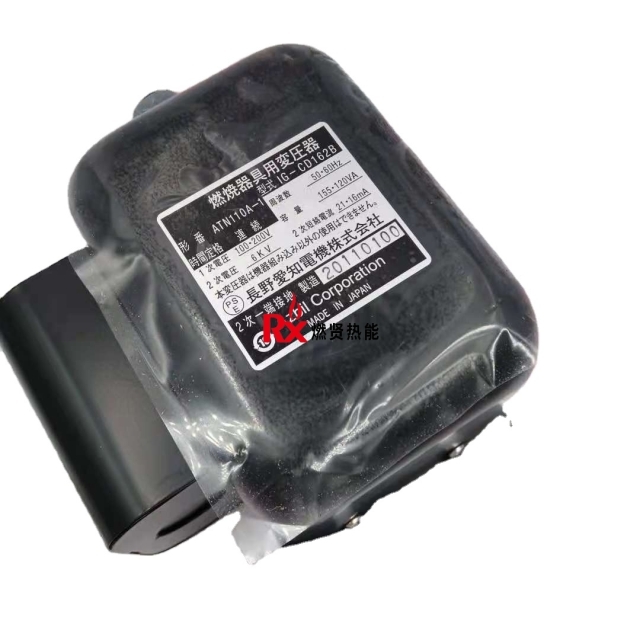

Azbil ATN110A-1 High Voltage Ignition Transformer for Industrial Burner Boiler Combustion System Original
Azbil ATN110A-1 High Voltage Ignition Transformer for Industrial Burner Boiler Combustion System Original
{"pid":"496758","name":"Azbil ATN110A-1 High Voltage Ignition Transformer for Industrial Burner Boiler Combustion System Original","picid":"1946402","price":"280","sell_type":"0","LotUnitTypeName":"bags","link":"\/sale-496758-azbil-atn110a-1-high-voltage-ignition-transformer-for-industrial-burner-boiler-combustion-system-original.htm","picurl":"https:\/\/www.shranxian.com\/photo\/p1946402-360x360-azbil-atn110a-1-high-voltage-ignition-transformer-for-industrial-burner-boiler-combustion-system-original.jpg","unit_prefix":"$","unit_type_name":"piece","usd_price":"280.000"}
$280
$0.000
$ 50
to
United States
Via
FedEX / UPS
Estimated delivery time: 4-9 Days
Choose your location
Shipping Inquiry
Ship to:
- Russia
- United States
- Brazil
- Australia
- United Kingdom
- Spain
- France
- Canada
- Poland
- Turkey
- Sweden
- Israel
- Italy
- New Zealand
- Germany
- China
- Afghanistan
- Aland Islands
- Albania
- Alderney
- Algeria
- American Samoa
- Andorra
- Angola
- Anguilla
- Antigua and Barbuda
- Argentina
- Armenia
- Aruba
- Ascension Island
- Austria
- Azerbaijan
- Bahamas
- Bahrain
- Bangladesh
- Barbados
- Belarus
- Belgium
- Belize
- Benin
- Bermuda
- Bhutan
- Bolivia
- Bosnia and Herzegovina
- Botswana
- Brunei Darussalam
- Bulgaria
- Burkina Faso
- Burundi
- Cambodia
- Cameroon
- Cape Verde
- Cayman Islands
- Central African Republic
- Chad
- Chile
- Christmas Island
- Cocos (Keeling) Islands
- Colombia
- Comoros
- Congo, The Democratic Republic Of The
- Congo, The Republic of Congo
- Cook Islands
- Costa Rica
- Cote D'Ivoire
- Croatia (local name: Hrvatska)
- Cuba
- Cyprus
- Czech Republic
- Denmark
- Djibouti
- Dominica
- Dominican Republic
- East Timor
- Ecuador
- Egypt
- El Salvador
- Equatorial Guinea
- Eritrea
- Estonia
- Ethiopia
- Falkland Islands (Malvinas)
- Faroe Islands
- Fiji
- Finland
- French Guiana
- French Polynesia
- Gabon
- Gambia
- Georgia
- Ghana
- Gibraltar
- Greece
- Greenland
- Grenada
- Guadeloupe
- Guam
- Guatemala
- Guernsey
- Guinea
- Guinea-Bissau
- Guyana
- Haiti
- Honduras
- Hong Kong
- Hungary
- Iceland
- India
- Indonesia
- Iran (Islamic Republic of)
- Iraq
- Ireland
- Jamaica
- Japan
- Jersey
- Jordan
- Kazakhstan
- Kenya
- Kiribati
- Kuwait
- Kyrgyzstan
- Lao People's Democratic Republic
- Latvia
- Lebanon
- Lesotho
- Liberia
- Libya
- Liechtenstein
- Lithuania
- Luxembourg
- Macau
- Macedonia
- Madagascar
- Malawi
- Malaysia
- Maldives
- Mali
- Malta
- Marshall Islands
- Martinique
- Mauritania
- Mauritius
- Mayotte
- Mexico
- Micronesia
- Moldova
- Monaco
- Mongolia
- Montenegro
- Montserrat
- Morocco
- Mozambique
- Myanmar
- Namibia
- Nauru
- Nepal
- Netherlands
- Netherlands Antilles
- New Caledonia
- Nicaragua
- Niger
- Nigeria
- Niue
- Norfolk Island
- North Korea
- Northern Mariana Islands
- Norway
- Oman
- Other Country
- Pakistan
- Palau
- Palestine
- Panama
- Papua New Guinea
- Paraguay
- Peru
- Philippines
- Portugal
- Puerto Rico
- Qatar
- Reunion
- Romania
- Rwanda
- Saint Barthelemy
- Saint Kitts and Nevis
- Saint Lucia
- Saint Martin
- Saint Vincent and the Grenadines
- Samoa
- San Marino
- Sao Tome and Principe
- Saudi Arabia
- Scotland
- Senegal
- Serbia
- Seychelles
- Sierra Leone
- Singapore
- Slovakia (Slovak Republic)
- Slovenia
- Solomon Islands
- Somalia
- South Africa
- South Georgia and the South Sandwich Islands
- South Korea
- South Sudan
- Sri Lanka
- St. Pierre and Miquelon
- Sudan
- Suriname
- Swaziland
- Switzerland
- Syrian Arab Republic
- Taiwan
- Tajikistan
- Tanzania
- Thailand
- Timor-Leste
- Togo
- Tonga
- Trinidad and Tobago
- Tunisia
- Turkmenistan
- Turks and Caicos Islands
- Tuvalu
- Uganda
- Ukraine
- United Arab Emirates
- Uruguay
- Uzbekistan
- Vanuatu
- Vatican City State (Holy See)
- Venezuela
- Vietnam
- Virgin Islands (British)
- Virgin Islands (U.S.)
- Wallis And Futuna Islands
- Yemen
- Yugoslavia
- Zambia
- Zanzibar
- Zimbabwe
Carrier
Cost
Delivery Time
-
EMSFree Shipping2-5 Days
You’ll see exact shipping costs and arrival dates when you checkout.
Stock: 666
Total:
$280
$0.00
Product Description
Company Profile
The main brands sold by our company are: Honeywell, Kromschroder, Fireye, MAXITROL, SIEMENS, OMRON, Durag, DUNGS, Elektrogas, Azbil, COFI, MADAS, Fujifilm, Eurotherm, WEST, LAM TEC, Fisher Main products are :DCS, SIS system, transmitter (temperature transmitter, pressure transmitter, differential pressure transmitter), temperature control instrument, carbon control meter, combustion safety products: flame detector, flame controller, solenoid valve, pressure switch, actuator, transformer Our company mainly engaged in Honeywell DCS and SIS system.Honeywell transmitter. Honeywell, Omron, Fuji temperature control instrument.combustion safety control products: Honeywell, Kromschroder, Siemens, Fireye, Maxitrol.adequate inventory, original auth
Payment&Logistics
FAQ
1. When can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
4. How long does the whole procedure being worked out?
After you place a order,the production handling time is about 45-60 days.
We need 15 days to prepare all the stuff then 30 days for manufacturing.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian.
If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
6.What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.
7.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
8.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
9.What's the lead time for regular order?
14-21 days for order quantity lower than 5000pc; For more quantity, usually 30 days.
10.Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
4. How long does the whole procedure being worked out?
After you place a order,the production handling time is about 45-60 days.
We need 15 days to prepare all the stuff then 30 days for manufacturing.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian.
If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
6.What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.
7.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
8.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
9.What's the lead time for regular order?
14-21 days for order quantity lower than 5000pc; For more quantity, usually 30 days.
10.Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
Azbil ATN110A-1 Ignition Transformer
High-Voltage Burner Ignition Transformer for Industrial Gas & Oil Burners
1. Product Overview
The Azbil ATN110A-1 is a high-voltage ignition transformer designed for reliable ignition of industrial and commercial gas and oil burners. It provides a stable 6,000 V high-voltage output for spark ignition and features a 100/200 VAC selectable primary voltage, making it suitable for a wide range of combustion control systems.
Equipped with a terminal box for easy wiring, the ATN110A-1 is widely used in boilers, industrial furnaces, ovens, incinerators, and thermal processing equipment. An optional splash-proof enclosure is available for harsh operating environments.
2. Key Features
- High-voltage ignition transformer for industrial burners
- 100 VAC / 200 VAC selectable input by tap
- 6,000 VAC high-voltage secondary output
- Continuous-duty operation
- Built-in terminal box for convenient wiring
- Stable ignition performance and long service life
- Compact and rugged construction
- Optional splash-proof protective case available
- Suitable for gas and oil combustion systems
3. Technical Specifications
| Item | Specification |
|---|---|
| Model | ATN110A-1 |
| Brand | Azbil |
| Product Type | Ignition Transformer |
| Primary Voltage | 100/200 VAC, 50/60 Hz (Selectable) |
| Input Voltage Range | 85%–110% of Rated Voltage |
| Secondary Voltage | 6,000 VAC ±10% (Open Circuit) |
| Secondary Current | 21 mA (50 Hz), 16 mA (60 Hz) |
| Power Consumption | 155 VA (50 Hz), 120 VA (60 Hz) |
| Recommended Spark Gap | 2 mm |
| Recommended Air Velocity | 5 m/s |
| Secondary Cable Length | Max. 1.5 m |
| Insulation Resistance | ≥50 MΩ (500 VDC Megger) |
| Dielectric Strength | 1,500 VAC for 1 min |
| Operating Temperature | -20°C to +55°C (Intermittent Duty) -20°C to +40°C (Continuous Duty) |
| Ambient Humidity | ≤95% RH |
| Weight | Approx. 3.45 kg |
| Mounting | 4-Bolt Mounting |
| Grounding | Single-point Ground |
| Optional Accessory | APN4708 Splash-proof Case |
4. Applications
- Industrial gas burners
- Oil-fired burners
- Steam boilers
- Hot water boilers
- Industrial furnaces
- Heat treatment equipment
- Incinerators
- Drying systems
- Glass and ceramic kilns
- Thermal processing equipment
5. Advantages
Compared with conventional ignition transformers, the Azbil ATN110A-1 offers:
- High 6 kV ignition voltage for reliable burner startup
- Dual-voltage input (100/200 VAC) for flexible installation
- Stable high-voltage output
- Continuous-duty design
- Compact construction with terminal box
- Excellent electrical insulation performance
- Easy installation and maintenance
- Proven reliability in industrial combustion applications
6. Why Choose Us
- Original Azbil combustion control products
- Stable inventory and fast delivery
- Competitive pricing
- Professional technical support
- OEM and bulk order service available
- Worldwide shipping
7. Packaging and Delivery
- Standard export packaging
- Shock-resistant protection
- Fast dispatch for in-stock products
- Worldwide shipping by express, air freight, or sea freight
8. Inquiry Now
If you are looking for the Azbil ATN110A-1 Ignition Transformer, we can provide competitive pricing, fast delivery, and professional technical support.
Contact us today for quotations, technical datasheets, and product availability.
LAMTEC 662R5009-0
LAMTEC 662R5009-0 Electronic Servo Motor
9 Nm Electronic Actuator for Industrial Burner Air Damper & Gas Butterfly Valve Control
1. Product Overview
The LAMTEC 662R5009-0 is an electronic servo motor designed for precise positioning of air dampers and gas butterfly valves in industrial combustion systems. As part of the LAMTEC electronic actuator series, it provides accurate modulation of combustion air and fuel flow, helping improve burner efficiency, combustion stability, and overall system safety.
Featuring 9 Nm output torque, 90° rotation, and a high-resolution positioning system, the actuator is suitable for industrial gas burners, oil burners, boilers, furnaces, and thermal processing equipment. Its durable metal gear transmission and compact design ensure reliable long-term operation in demanding industrial environments.
2. Key Features
- Electronic servo motor for industrial burner control
- 9 Nm rated output torque
- High-precision positioning with 0.1° resolution
- 90° adjustable rotation angle
- Metal gear transmission for long service life
- Anti-clockwise rotation with spring preload
- Electronic OPEN/CLOSE manual operation
- Compact design for easy installation
- Reliable performance in continuous industrial applications
- Suitable for air dampers and gas butterfly valves
3. Technical Specifications
| Item | Specification |
|---|---|
| Model | 662R5009-0 |
| Brand | LAMTEC |
| Product Type | Electronic Servo Motor |
| Rated Torque | 9 Nm |
| Rotation Angle | 0–90° |
| Position Resolution | 0.1° per step |
| Running Time | 60 s / 90° (Factory setting) |
| Supply Voltage | 230 VAC, 50 Hz |
| Control Mode | TPS Positioning Control |
| Rotation Direction | Counter-clockwise |
| Output Shaft | Ø10 × 25 mm, Parallel Key 3 × 3 × 8 mm |
| Protection Class | IP54 |
| Ambient Temperature | -20°C to +60°C |
| Manual Override | OPEN / CLOSE Push Buttons |
| Gear Type | Metal Gear Transmission |
| Connection | Plug Connector (Cable Ordered Separately) |
Factory configuration and control settings may vary depending on the burner manufacturer.
4. Applications
- Industrial gas burners
- Oil-fired burner systems
- Steam boilers
- Hot water boilers
- Industrial furnaces
- Heat treatment equipment
- Drying systems
- Asphalt plants
- Thermal processing equipment
- Combustion air damper control
5. Advantages
Compared with conventional burner actuators, the LAMTEC 662R5009-0 offers:
- High-precision electronic positioning
- Stable 9 Nm output torque
- Durable metal gear mechanism
- High positioning accuracy for combustion control
- Reliable long-term industrial operation
- Easy installation and commissioning
- Low maintenance requirements
- Improved combustion efficiency and burner performance
6. Why Choose Us
- Original LAMTEC combustion control products
- Stable inventory and fast delivery
- Competitive pricing
- Professional technical support
- OEM and bulk order service available
- Worldwide shipping
You may also like
Questions & Answers
No data
Reviews
0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%
Share your thoughts
Max 4 files. JPG, PNG, GIF accepted.
