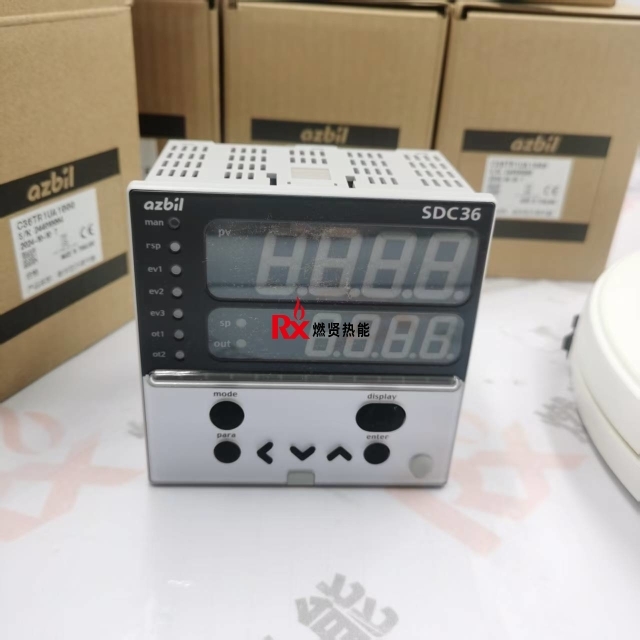

The C36 (SDC36) is a 1/4 DIN (96×96mm) single-loop digital controller introduced by AZBIL (formerly Yamatake) of Japan. As a high-end, general-purpose model within the SDC series of temperature and process controllers, it is distinguished by its high precision, exceptional stability, and multi-functional capabilities, making it widely applicable in industrial process control for parameters such as temperature, pressure, flow rate, and liquid level.
**Key Features**
**Control Accuracy:** ±0.1% FS (Full Scale), with a sampling period of 100ms.
**Control Algorithms:** Equipped with proprietary Ra-PID (RationaLOOP PID) and Just-FiTTER algorithms, designed to suppress overshoot, ensure rapid response, and deliver robust stability.
**Universal Input:** Supports thermocouples (K/J/T/E/R/S/B/N), RTDs (Pt100/Pt1000), and DC voltage/current signals (4–20mA/0–5V), allowing for seamless switching across the full measurement range.
**Output Configuration:** Up to two control outputs available; selectable options include relay contacts, voltage pulses, continuous voltage, and current (4–20mA). Supports dual-output configurations for heating and cooling applications.
**Auxiliary Functions:** Features include 3 event outputs, Remote Setpoint (RSP) input, 4 external contact inputs, RS485 communication (Modbus RTU protocol), Auto-tuning capabilities, and bumpless manual/automatic mode switching.
**Display & Operation:** Dual-line, high-brightness LED display (simultaneously showing PV and SV values). Features a streamlined button layout and supports the Smart Loader Package (SLP) software for rapid configuration, data backup, and system monitoring.
**Power Supply & Protection:** AC 100–240V (50/60Hz) power input; IP65-rated front panel protection ensures suitability for harsh industrial environments.
**Typical Application Industries**
Heat Treatment, Injection Molding, Extrusion, Packaging Machinery
Food & Pharmaceuticals, Chemicals, Semiconductor Manufacturing, HVAC Systems
Laboratory Equipment, Environmental Test Chambers
