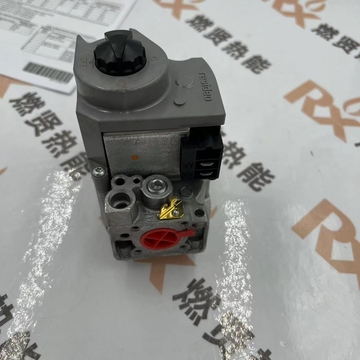

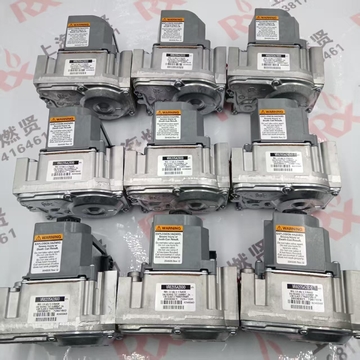

Honeywell VR8205M2948 VR8205A2800 Ignition Gas Solenoid Valve Hot Water Boiler Gas Boiler Stock
Collected in wish list
- Description
- Specification
- Q&A
- Customer Reviews
brand | Honeywell |
Model number | VR8205M2948，VR8205A2800 |
material | Cast aluminium |
Plant location | Mexico |
weight | 1.5KG |
voltage | 24V 50/60HZ |
Place of dispatch | Shang hai CHINA |

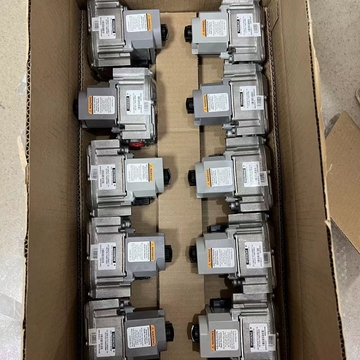

inventory | 60pcs |
caliber | DN20 |
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
4. How long does the whole procedure being worked out?
After you place a order,the production handling time is about 45-60 days.
We need 15 days to prepare all the stuff then 30 days for manufacturing.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian.
If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
6.What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.
7.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
8.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
9.What's the lead time for regular order?
14-21 days for order quantity lower than 5000pc; For more quantity, usually 30 days.
10.Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.

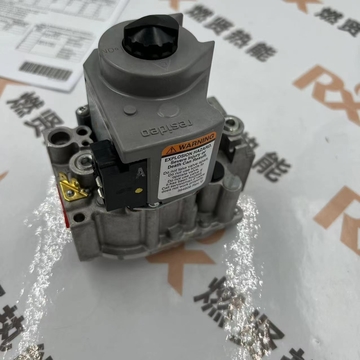

VR8205M2948 / VR8205A2800 (Honeywell/Resideo)
Description: 24 Vac, Dual Safety Automatic Valve, Direct Spark Ignition (DSI / Hot Surface Ignition) Combination Gas Valve, designed for natural gas / LPG combustion equipment. I. Common Core Specifications (VR8205 Series)
Brand: Honeywell (now Resideo)
Voltage: 24 Vac / 50–60 Hz; Current: 0.5 A
Structure: Manual Valve + Dual Automatic Valves + Integrated Pressure Regulator
Safety: Dual-stage safety shutoff (automatic valve closure upon power failure, gas supply interruption, or flame failure)
Compatible Fuels: Natural Gas (NG) / Liquefied Petroleum Gas (LPG); field-convertible
Connections: 1/2” NPT inlet and outlet; installable at any angle (0–90°)
Adjustments: Top-accessible controls (pressure regulation, wiring connections, manual shutoff)
Certifications: UL/CSA/CE; Compliant with North American gas safety standards
II. Model Distinctions (A vs. M)

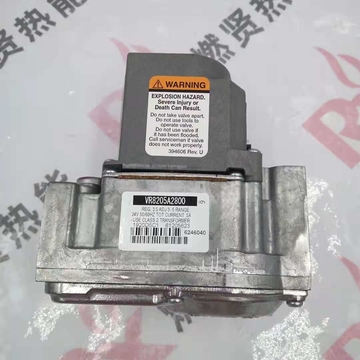

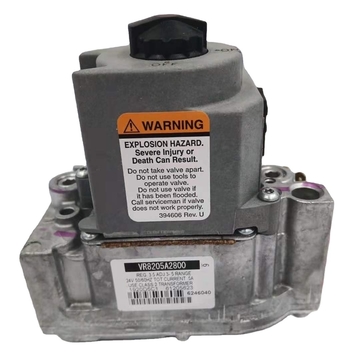

1) VR8205A2800 (Standard Model)
Full Model Name: VR8205A2800/B
Port Size: 1/2” × 1/2” NPT
Pressure Regulation: 3.5” WC (≈0.87 mbar); Fixed Outlet Pressure
Flow Rate: 20–200 cfh (Natural Gas), approx. 0.5–5.4 m³/h
Ignition: Standard Fast-Opening; Compatible with Direct Spark Ignition / Hot Surface Ignition systems
Typical Applications: Residential / Commercial wall-mounted boilers, water heaters, small boilers (≤150,000 BTU/h)

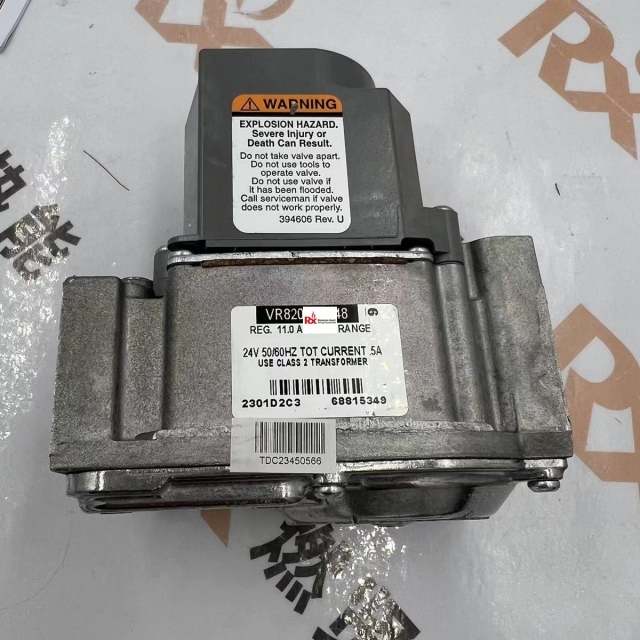

2) VR8205M2948 (Modureg Adjustable Model)
Full Model Name: VR8205M2948/B
Port Size: DN20 (3/4”); Higher flow capacity
Pressure Regulation: Modureg Adjustable; Wider adjustment range (adaptable to different gas types)
Flow Rate: 30–415 cfh (Natural Gas), approx. 0.8–11.2 m³/h; Higher power output capability
Ignition: Standard Fast-Opening; Compatible with industrial burners and medium-to-large boilers
Key Differences: M = Modureg Adjustable Pressure + Higher Flow/Larger Port Size; A = Fixed Pressure + Standard Flow Rate
III. Operating Principle
Thermostat Ignition Request → First Solenoid Valve (Fast-Opening) Opens.
Successful Ignition → Second Diaphragm Valve (Pressure-Regulating) Opens, maintaining stable outlet pressure.
Flame Failure / Power Loss / Overpressure → Both valves simultaneously execute a rapid shut-off to prevent gas leakage.
IV. Model Selection and Replacement
VR8205A2800: Low Power, Fixed Pressure, 1/2” Port → Preferred Choice for Residential Equipment
VR8205M2948: Medium-to-High Power, Adjustable Pressure, 3/4” Port → Industrial / Commercial Equipment
