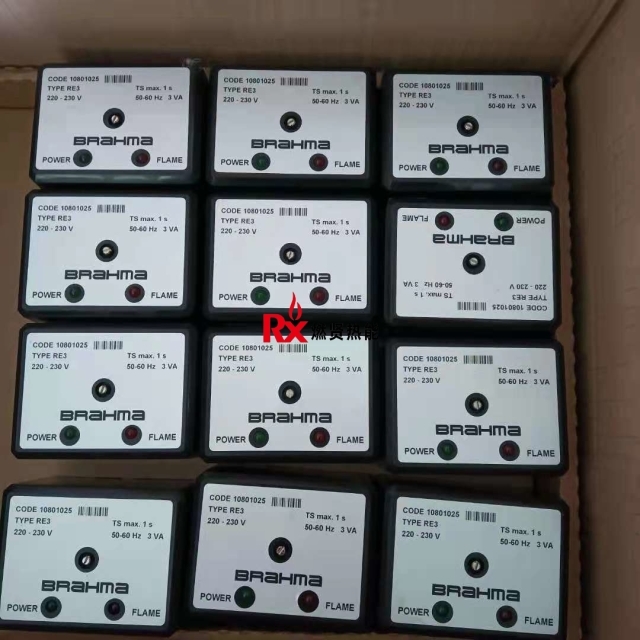

RE3 BRAHMA Flame Monitoring Relay Controller — Dedicated to Gas Burners
Collected in wish list
- Description
- Specification
- Q&A
- Customer Reviews
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
4. How long does the whole procedure being worked out?
After you place a order,the production handling time is about 45-60 days.
We need 15 days to prepare all the stuff then 30 days for manufacturing.
5.What about the transportation and delivery date?
Normally we use shipment to transprot the goods.It is about 25-40 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian.
If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
6.What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.
7.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
8.Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
9.What's the lead time for regular order?
14-21 days for order quantity lower than 5000pc; For more quantity, usually 30 days.
10.Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
I. Core Functions
Dual-Mode Flame Detection: Supports flame detection via the ion current method (electrode/ion rod) or the UV method (using UV1/UV2 probes).
Signal Conversion and Output: Converts weak flame signals (at the μA level) into relay switching signals for use in safety interlocks or remote monitoring systems.
Status Indication: Features a green LED (Power) and a red LED (Flame) on the front panel to provide a clear visual display of the power supply and flame status (a non-LED version is available as an option).
Safe and Rapid Response: Features a response time of **< 1 second**; in the event of a fault, it rapidly cuts off the gas supply to prevent flame failure and subsequent explosive reignition.
II. Technical Specifications (Standard Model RE3, Code 10801025)
Power Supply: 220–230 VAC / 50–60 Hz (110V option available)
Power Consumption: 3 VA (Operating)
Detection Method: Ion Probe (1 μA sensitivity) or UV Probe (UV1/UV2)
Response Time: < 1 s
Contact Capacity: 5 A / 250 VAC (cosφ=1); 3 A / 250 VAC (cosφ=0.4)
Operating Temperature: 0 ~ +60 °C
Protection Class: IP40
Electrical Life: > 250,000 operations
