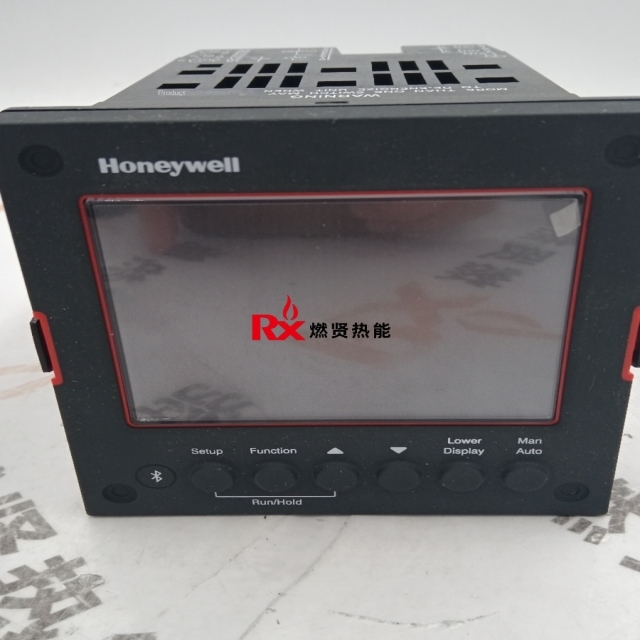

Honeywell Temperature Control Meter DC2800 Universal Digital Controller — 1/4 DIN Temperature / Process Control
Collected in wish list
- Description
- Specification
- Q&A
- Customer Reviews
| item | value |
| Control Mode | Microcontroller |
| Nominal Voltage | 220v |
| Power Phase Number | Single phase |
| Rated Power | 2.2kw |
| Place of Origin | China |
| Model Number | DC2800-CB-2S0-100-000-00-0 |
| Brand Name | Honeywell |
| Application | Industrial |
| IP Level | Ip20 |
| Size | 1.5*1.5*1.5 |
| Type | Servo motor |
The main brands sold by our company are: Honeywell, Kromschroder, Fireye, MAXITROL, SIEMENS, OMRON, Durag, DUNGS, Elektrogas, Azbil, COFI, MADAS, Fujifilm, Eurotherm, WEST, LAM TEC, Fisher
Main products are :DCS, SIS system, transmitter (temperature transmitter, pressure transmitter, differential pressure transmitter), temperature control instrument, carbon control meter, combustion safety products: flame detector, flame controller, solenoid valve, pressure switch, actuator, transformer,
1. who are we?
We are based in Shanghai, China, start from 2018,sell to Domestic Market(87.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),South America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Africa(1.00%),Eastern Europe(1.00%),Mid East(1.00%),Southeast Asia(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PLC, Gas detector, Temperature control meter, Burner accessories, Building automatic control instrument
4. why should you buy from us not from other suppliers?
Our company mainly engaged in Honeywell DCS and SIS system.Honeywell transmitter. Honeywell, Omron, Fuji temperature control instrument.combustion safety control products: Honeywell, Kromschroder, Siemens, Fireye, Maxitrol.adequate inventory, original auth
5. what services can we provide?
Accepted Delivery Terms: -;
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T;
Language Spoken: English,Chinese
The DC2800 (often designated commercially as the UDC2800) is Honeywell's new generation of 1/4 DIN single-loop universal digital controllers. Designed for the precise closed-loop control of process variables—such as temperature, pressure, and flow—it serves as a widespread replacement for the legacy UDC2500 and UDC2300 models, distinguished by its high precision, rapid response, robust networking capabilities, and ease of configuration. **Core Positioning**
**Industries:** Industrial furnaces, ovens, boilers, heat treatment, environmental test chambers, plastics extrusion, food & pharmaceuticals, etc.
**Control Variables:** Temperature (primary focus), pressure, humidity, flow rate, oxygen/carbon potential, etc.
**Mounting:** 1/4 DIN panel mount; cabinet flush mount
**Power Supply:** DC2800 = 100–240 VAC; DC2900 = 24 VAC/DC version also available
**Key Specifications**
**1) Inputs**
2 Universal Analog Inputs (AI1/AI2)
Thermocouples: J/K/T/E/R/S/B/N, etc.
RTDs: Pt100/Pt1000 (3-wire / 2-wire)
Signals: mV, 0–5V, 1–5V, 0–10V, 0–20mA, 4–20mA
Accuracy: ±0.15% FS (typical); field-calibratable to ±0.05% FS
Sampling Rate: 100ms (10 samples/second)
2 Digital Inputs (DI) (Dry contact / 24V pulse)
**2) Outputs** (Up to 4 channels; configurable on demand)
Relay Output (SPDT/SPST)
Solid State Relay (SSR) Drive
4–20mA Analog Output
Time-Proportional Output (3ms resolution)
**3) Control Algorithms**
PID: Up to 4 sets of PID parameters; supports Accutune III auto-tuning + Fuzzy Logic (for overshoot suppression)
On/Off Control, Time-Proportional Control, Dual Output (Heating/Cooling)
Program Control: Up to 64 setpoint segments; supports temperature ramp/soak profiles
**4) Display & Operation**
3.5-inch TFT Color Screen: Simultaneous display of PV/SP/Output/Alarms
Multi-language Support: Chinese / English / German / French, etc.
Keypad Operation + Bluetooth Mobile App Configuration (BLE 4.2, 3-meter range)
**5) Communication** (Key Selling Point)
Standard: Bluetooth (One-touch configuration via EasySet App)
Optional: Ethernet 10/100 Mbps (Modbus TCP)
Optional: RS-485 (Modbus RTU)
6) Environmental & Protection Specifications
Front Panel: NEMA 4X / IP66 (Dustproof and waterproof; suitable for food processing washdown environments)
Operating Temperature: 0–55°C
Dimensions: 1/4 DIN (approx. 96 × 96 mm); Depth: 114 mm
Key Features (One-sentence Summary)
High Precision + Fast Response: ±0.15% accuracy, 100 ms sampling rate—ensuring more stable temperature control
Color Display + Bluetooth: Mobile configuration in just 2 seconds—no tools or jumpers required
Multiple Inputs/Outputs: Universal sensor compatibility, adaptable to complex industrial processes
Robust Connectivity: Ethernet / RS-485 / Bluetooth support for seamless integration with SCADA and IoT systems
High Protection Rating: IP66 / NEMA 4X—ensuring long-term stability in harsh operating environments
