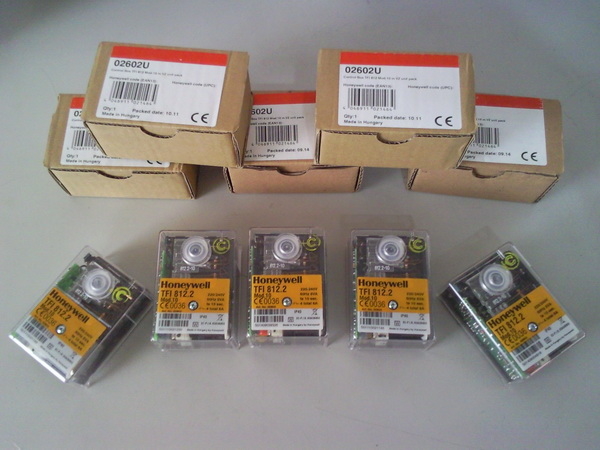

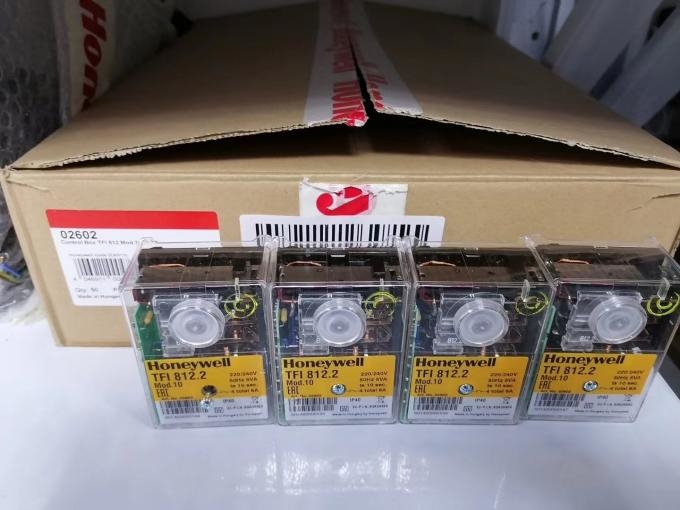

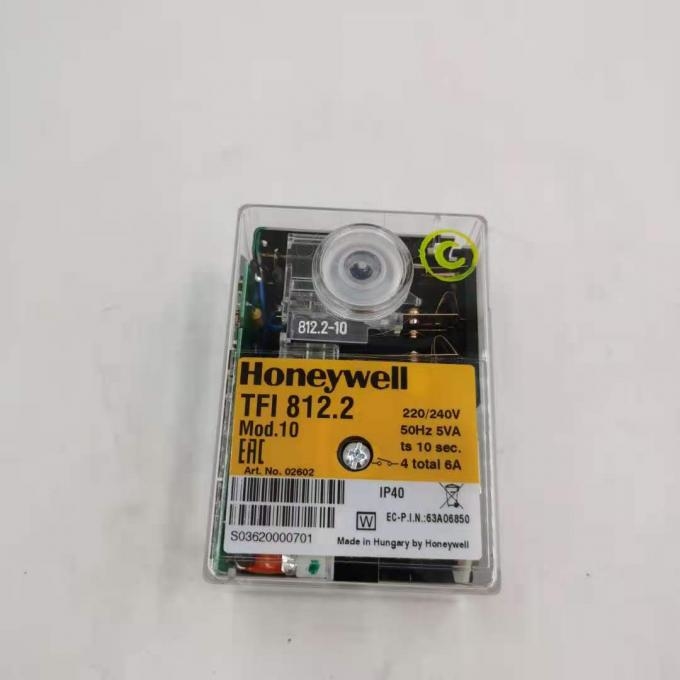

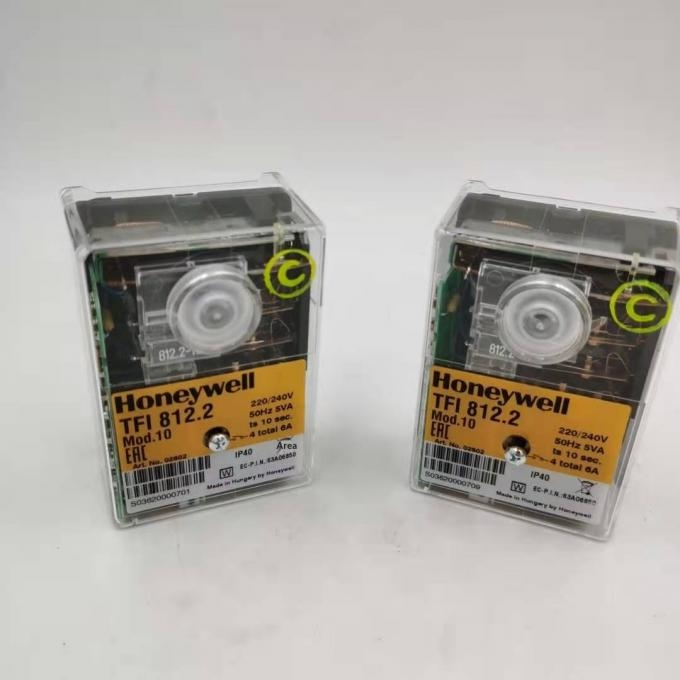

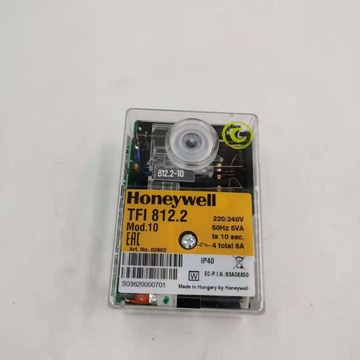

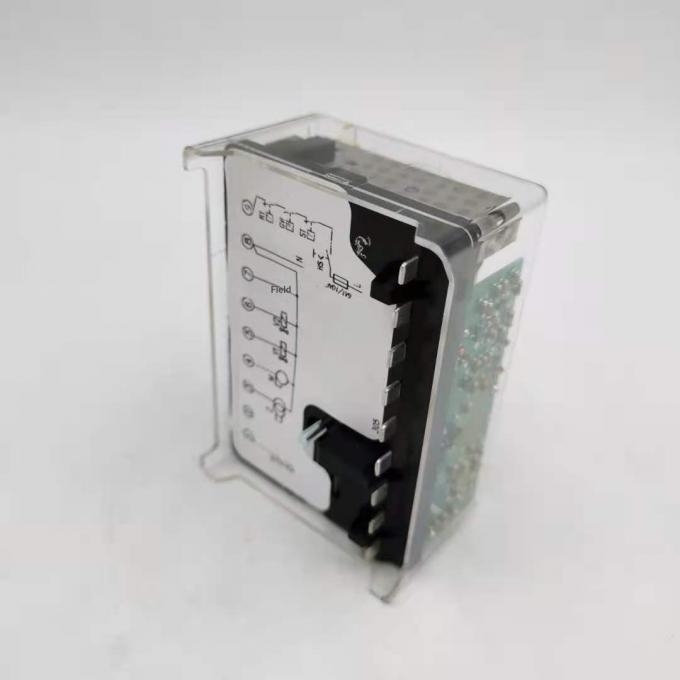

gas burner controllerTFI 812

For two-stage atmospheric gas burner control

Flame detectors available:

-ion probe

-infrared detector

Product Description

• §TFI 812.2 Gas burner controller for controlling and monitoring atmospheric gas combustiondevice. They passedDIN 4788 part 3 edition 04.89 and European standards

EN298Certification and testing. They are also suitable for stationary air heaters.(According to the standardDIN 4794)

• §The controller is designed with the highest safety performance in order to prevent voltage fluctuations. If the LordWhen the voltage drops below the allowable range, the operation will be interrupted and the controller willPrevent the automatic start procedure from repeating.In this way, the security of the system will not be affected.The main voltage is too low and in danger.
• §FR870(NO.70700series)remote reset can be installed and is also allowedRemote reset operation.(ReferenceNo.750File)
• §TFI 812 mod. 5 can be substituted inTFI 712 F, at the same timeTFI 812 mod. 10also canto be used as an alternativeTFI 712.
• §There is no need to rewire or replace the basic base when the product is replaced. ProductsThe height can be varied by lengthening the reset button(No.70601Series)to compensate.
• §TFI 812.1 andTFI 812.2The differenceTF1 812.2With an automatic defenseProtection voltage reduction function. Otherwise, they will be exactly the same regardless of whether they run,Also
• Model

TFI 812.2 mod. 5Safety interval time5 Seconds

Pre-ignition time approximately lasts15Seconds

The actual specific capacity please refer to the actual application environment and specific gas appliance standard instructions

TFI 812.2 mod. 10Safety interval time10 Seconds

Approximate pre-ignition duration10Seconds

The actual specific capacity please refer to the actual application environment and specific gas appliance standard instructions

TFI 812.2 B mod.5dito-Without pre-ignition

TFI 812.2 B mod.10dito-Without pre-ignition

Technical parameters

Operating voltage220 / 240 V (-15... + 10%)

50 Hz (40 - 60 Hz)

Fuse blown10 A Instantaneous current or 6 A Continuous current

Power consumption5 VA

Pre-ignition duration15or 10Seconds

Delay, Post Ignition TimeNone

Safety interval time5 or10Seconds

Second Fire Delayabout 20 Seconds

Reset delay after lock deathabout 60 Seconds

Allowable working ambient temperature-20° CTo60° C

Sensitivity1.5 mA

Minimum required ionization current2 - 3 mA

Ion probe insulation classProbe to ground

Greater50 MResistance

deviation capacitanceProbe to ground

Below1000 pF

(Longest20 mWire)

Protection levelIP 44

Weight including base250 g

Installation positionarbitrary position

Product Description

• §ZT 931The high frequency ignition transformer is suitable for gas burners of any power.ZT 931A relatively large deformation spark can be maintained when the burner power is relatively large or the inlet air speed is relatively high.
• §and is an electronic ignition device that produces minimal electromagnetic interference, which is important for the need to comply with

EN55014The burner is very important.ZT931The current is very low,Power consumption is also low.

• §The power connection is a three-wire connector that is widely used. Transformer coil plug-in can be replaced.

Connection:

phase line /Midline / Ground3 AMPPlug terminal

6.30 x 0.8mm

High pressureø 4 mmPlug or ø 1

mmPlug

Primary current0.25 A

Rated settingIntermittent

Within three minutes33% E.D.

Interference Level 0875)

Ignition voltage1 x 14 kV

Secondary current40 mA rms

Secondary Frequency20 kHz

spark interval time3 - 5 mm

ignition cablePlug and Play

Protection levelIP 40

Working environment temperature-10° C... 60° C

Installation positionArbitrary

Weight280 g
