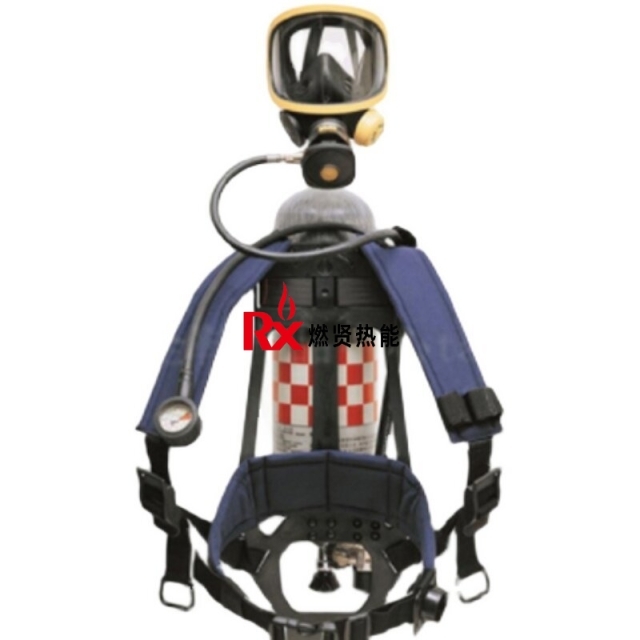

Honeywell SCBA805M T8000 SCBA105K C900 High Accuracy Self-contained Compressed Air Breathing Apparatus SCBA with Oxygen Tank

Honeywell SCBA805M T8000 (T8000 Series)

**Positioning:** Dual-purpose positive-pressure SCBA for firefighting and industrial use; features a buddy-breathing port and a domestically manufactured 6.8L carbon fiber cylinder.

**Key Specifications**

**Cylinder:** 6.8L Carbon Fiber (aluminum liner + carbon fiber wrapping), 30 MPa working pressure, 2040L air capacity, approx. 45 minutes of duration (at 30L/min).

**Weight:** Approx. 10.4 kg (complete unit, including cylinder).

**Face Mask:** PANO full face mask; 270° field of view; double-layer silicone seal; anti-fog coating; designed to fit Asian facial contours.

**Alarm:** Low-pressure alarm triggers at 5–6 MPa; features a front-mounted warning whistle and pressure gauge.

**Interface:** Equipped with a buddy-breathing port (allows connection to another person's face mask or hood).

**Standards:** GB/T 16556, GA 124, EN 137.

**Operating Temperature:** -30°C to +60°C.

**Key Features**

**Buddy-Breathing Function:** The backplate features an integrated buddy-breathing port, allowing for emergency air supply to another person.

**Lightweight Design:** The cylinder weighs 3.8 kg—approximately 40% lighter than a steel cylinder.

**High Safety:** The cylinder remains undamaged after a 1-meter drop test; fluorescent markings ensure visibility in dark environments.

**Ergonomics:** Features a five-point head harness and adjustable shoulder/waist straps for a stable and comfortable fit.

**Applicable Scenarios**

Firefighting operations; chemical/petroleum spill response; confined space entry; rescue operations in toxic or oxygen-deficient environments.

Honeywell SCBA105K C900 (C900 Series)

**Positioning:** Standard industrial-grade positive-pressure SCBA; features a 6.8L domestically manufactured carbon fiber cylinder; designed primarily for routine industrial protection.

**Key Specifications**

**Cylinder:** 6.8L Carbon Fiber, 30 MPa working pressure, approx. 45 minutes of duration.

**Weight:** <11 kg (complete unit).

**Face Mask:** PANO full face mask; features anti-fog coating, a speech diaphragm (compatible with two-way radios), and an internal frame for prescription glasses. Air Supply: Medium pressure 7 bar; flow rate > 450 L/min; mask positive pressure 3 mbar.

Alarm: Integrated design featuring a front-mounted warning whistle and pressure gauge.

Standards: GA 124, EN 136 Class 3.

Key Features

Industrial Durability: Concealed backplate tubing prevents snagging; shoulder and waist straps are easy to clean and feature reflective safety markings.

Comfort & Low Resistance: Low exhalation resistance and optimized CO₂ expulsion minimize fatigue during prolonged wear.

Quick-Connect Interface: The air supply valve can be connected from any angle for convenient and rapid attachment.

Simplified Maintenance: Features a pin-less pressure reducer valve design, ensuring fewer malfunctions and lower maintenance costs.

Applicable Scenarios

Chemical industry, marine operations, oil & gas, metallurgy, warehousing, laboratories, and confined space operations.
